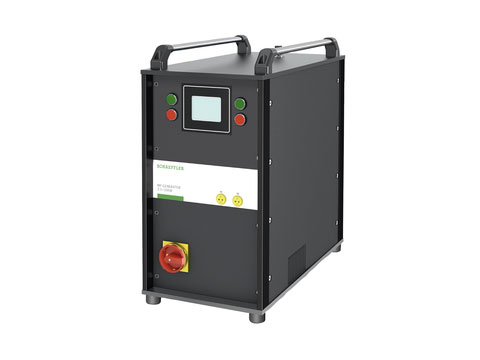

-MF-GENERATOR2.5-10KW-400V.jpg-1.jpg)
Đặt hàng tại ATEC
Đầy đủ chứng từ CO,CQ do Schaeffler Group cấp.
Thương hiệu BETEX - SCHAEFFLER
Technical data
| P |
10 kW |
Power |
|
10 – 25 kHz |
MF Frequency range | |
| U |
400 V |
Voltage |
|
Three-phase AC |
Current type | |
| I |
16 A |
Amperage |
| f |
50 – 60 Hz |
Power frequency |
|
3,5” |
Dimensions display | |
|
600 x 300 x 600 |
Dimensions of generator [LxWxH] (mm) | |
| ≈m |
46 kg |
Trọng lượng |
Functions
|
+ |
Forced air cooling | |
|
for type K thermocouple |
Temperature measurement | |
|
± 3.5 °C / ± 6.3 °F |
Accuracy | |
|
+ |
Inductor recognition | |
|
yes, for max 300 °C / 572 °F |
Temperature sensor | |
|
+ |
Extra thermocouple input | |
|
+ |
Heat curve in display | |
|
via touchscreen |
Setpoint power | |
|
via touchscreen |
Setpoint temperature | |
|
+ |
Setpoint temperature curve | |
|
via touchscreen |
Setpoint timer | |
|
via touchscreen |
Selection operating mode | |
|
Setpoint and actual value on touchscreen |
Digital readings temperature | |
|
Setpoint and actual value on touchscreen |
Digital readings time | |
|
Actual value on touchscreen |
Digital readings power | |
|
Actual value on touchscreen |
Digital readings frequency | |
|
— |
USB connection | |
|
— |
Network connection | |
|
— |
Heating log |
Additional information
|
Installation in operational state: green flash light |
Signaling by ... | |
|
Error message: red continuous light/acoustic signal |
Signaling by ... | |
|
End of heating cycle: green continuous light/acoustic signal |
Signaling by ... | |
|
Option |
Trolley | |
|
Option |
Signal tower |
Mẫu mã sản phẩm hiện tại của bạn
| Series | 2.5 | Standard |
| Version | 10 | Power 10 kW |
