Có sẵn tại kho ATEC
Đầy đủ chứng từ CO,CQ do Schaeffler Group cấp.
Thương hiệu BETEX - SCHAEFFLER
Technical data
| U |
230 V |
Operating voltage |
| f |
50 – 60 Hz |
Power frequency |
| P |
3.7 kVA |
Power consumption |
| I |
16 A |
Current rating |
| ϑh max |
240 °C |
Max. heating temperature |
|
0 – 99 min |
Heating time | |
|
Digital |
Display | |
|
1 |
Magnetic probe, quantity | |
| ≈m |
82.6 kg |
Trọng lượng |
Functions
|
+ |
Temperature hold | |
|
+ |
Automatic demagnetization, <2A/cm | |
|
+ |
Swivel arm | |
|
— |
Log function | |
|
— |
Delta-T control | |
|
+ |
Temperature control | |
|
+ |
Time control | |
|
— |
Temperature and time control | |
|
— |
Temperature and speed control | |
|
+ |
Overheating protection | |
|
+ |
Automatic power reduction | |
|
+ |
Device supports horizontal / lying heating of the workpiece | |
|
+ |
Device supports vertical / hanging heating of the workpiece |
Dimensions
|
788 mm |
Length HEATER | |
|
315 mm |
Width HEATER | |
|
456 mm |
Height HEATER | |
| B |
210 mm |
Space between poles |
| C |
205 mm |
Pole length |
| D |
70x80 |
Pole cross section (mm²) |
Workpiece to be heated
|
45 mm |
Min. inner diameter workpiece, vertical heating: with included yoke | |
|
15 mm |
Min. inner diameter workpiece, vertical heating: with optional yoke | |
|
110 mm |
Min. inner diameter workpiece, horizontal heating | |
| ØAmax |
600 mm |
Max. outer diameter workpiece |
|
205 mm |
Max. workpiece width, vertical heating | |
|
200 mm |
Max. workpiece width, horizontal heating | |
| mb max |
150 kg |
Max. workpiece weight |
Additional information
|
2 |
Yokes included, quantity | |
|
30x30, 70x80 |
Yokes included, cross section (mm²) |
Mẫu mã sản phẩm hiện tại của bạn

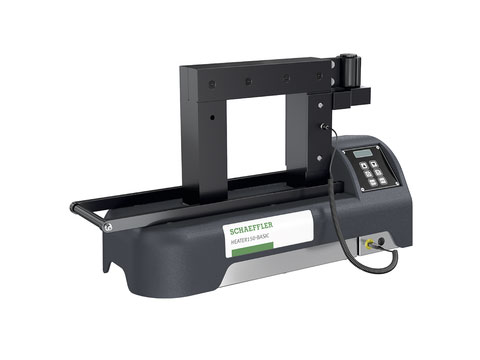

| Series | BASIC | Base version |
| Version | 150 | mb max = 150 kg |
