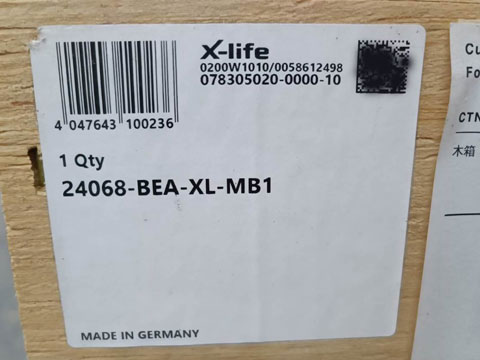

24068-BEA-XL-MB1 FAG FAG Có sẵn tại kho ATEC
Đầy đủ chứng từ CO,CQ do Schaeffler Group cấp.
Thay thế 24068-BEA-MB1
Spherical roller bearing (X-life)
Inner (d) MM340
Outer (D) MM520
Width (B) MM180
Inner (d) Inch13.3858
Outer (D) Inch20.4724
Width (B) Inch7.0866
Weight (kg)146
BoreC - Cylindrical Bore
Lubrication EnhancementW33 - Lubrication Groove and 3 Holes
SealNo Seal
Cage TypeM - Brass Cage
Radial Internal PlayCn Normal Internal Play
PrecisionStandard Precision
Heat StabilizationNo Heat Stabilization - Temperatures up to 120 °C
Vibrating Screen ExecutionNon Vibrating Screen Execution
Width (b) mm180
Radial Static Load Rating C0r (N)6200000
Radial Dynamic Load Rating Cr (N)3550000
Basic static load rating, radial (C 0r)"6200000.0000"
Limiting speed (n G)1080
Reference speed (n ϑr)610
ECLASS number23-05-09-11
ECLASS2 number23-05-09-11
Medias descriptionSpherical roller bearing 240..-BEA-XL-MB1, symmetric 2 outer ribs with rib washer
BEMaximum Capacity Design
AModified Internal Construction
XLX-Life
MB1Single-Piece Solid Brass Cage, Guided On Central Rib
