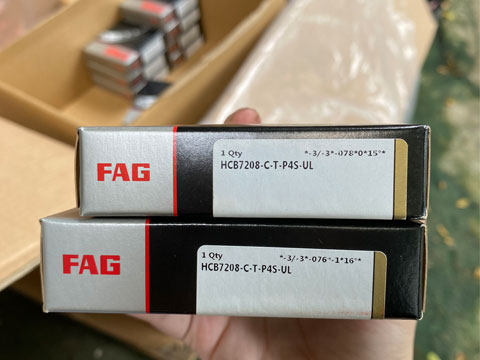

HCB7208-C-T-P4S-UL FAG Có sẵn tại kho ATEC
Đầy đủ chứng từ CO,CQ do Schaeffler Group cấp.
HCB hybrid spindle bearing with large ceramic balls
Tham khảo chi tiết tại: HCB7208-C-T-P4S-UL FAG
Inner (d) MM40
Outer (D) MM80
Width (B) MM18
Inner (d) Inch1.5748
Outer (D) Inch3.1496
Width (B) Inch0.7087
Weight (kg)0.322
SealNo Seal
Cage TypeTB - Hard Fiber Cage
PrecisionP4S Precision (Higher than P4)
Contact Angle15 degrees
PairingG - Universal Pairing
Axial Internal Clearance / PreloadUL - Universal design for fitting in pairs, bearing pair has slight preload in O and X arrangements
LubricationStandard Lubrication
Width (b) mm18
Radial Static Load Rating C0r (N)15400
Radial Dynamic Load Rating Cr (N)32500
Basic static load rating, radial (C 0r)"15400.0000"
Limiting speed for grease lubrication (n G Grease)24000
Limiting speed for oil lubrication (n G Oil)38000
ECLASS number23-05-08-03
ECLASS2 number23-05-08-03
Medias descriptionSpindle bearings HCB72..-C, adjusted, in pairs or sets, contact angle a = 15°, with ceramic balls, restricted tolerances
C15° Contact Angle
TTextile Laminated Phenolic Resin, Outer Ring Guided. The Cage Is Suitable For Long-Term Operation At Temperatures Up To 100°C
P4SBoundary Dimensions ISO 4, Abec-7, Running Accuracy ISO 2, Abec-9
ULSingle Bearing, Universal, Light Preload
The HCB7208-C-T-P4S-UL FAG is a hybrid spindle bearing. This bearing type has large ceramic balls. Hybrid spindle bearings can reach very high speeds with very little heat generation and wear. Even at very high speeds, a high degree of rigidity is maintained. This makes the HCB7208-C-T-P4S-UL FAG particularly suitable for use in high-speed- or grinding spindles.
FAG spindle bearings are single-row, angular contact ball bearings that cannot be dismantled. They have solid inner and outer rings as well as ball-and-cage assemblies with solid window cages. Due to their extremely tight tolerances, they are particularly suitable for applications that require high guidance accuracy and suitability for high speeds. Spindle bearings are commonly used for main spindles in machine tools.
In addition, FAG spindle bearings are designed as universal bearings. Universal bearings with the same deviation in inner ring bore and outer diameter can be combined for use in different arrangements. For example, when the load capacity of a single bearing is insufficient, two matching bearings can be used in a tandem arrangement to support axial loads in one direction only. In order to support axial loads in both directions as well as moments, O or X arrangements are good solutions.
