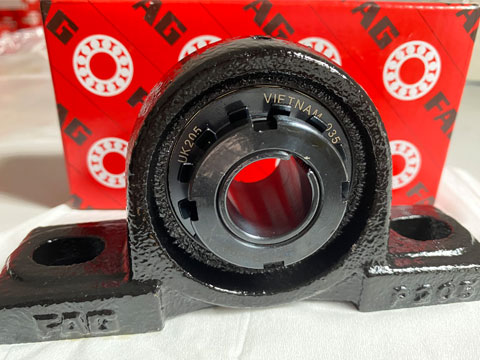

UKP205-J7 FAG Có sẵn tại kho ATEC
Bao gồm: UK205 + P205
Đầy đủ chứng từ CO,CQ do Schaeffler Group cấp.
Housing unit
Inner (d) MM20
Outer (D) MM140
Width (B) MM38
Inner (d) Inch0.7874
Outer (D) Inch5.5118
Width (B) Inch1.4961
Weight (kg)0.84
Seal2FK - Standard Seal + Plain Flinger
LubricationStandard Lubrication
Special TreatmentNo Special Treatment
Length total (L) mm140
Height (H 2) mm71
ECLASS number23-05-16-01
ECLASS2 number23-05-16-01
Medias descriptionPlummer block housing units UKP, cast iron housing, with long base, radial insert ball bearing with adapter sleeve, RSR seals
J7This Suffix Is The Standard With A Better Fitting In The Housing
The UKP205-J7 FAG is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.
Tham khảo chi tiết tại: UKP205-J7 FAG
