GE260-UK-2RS-B INA

GE260-UK-2RS-B INA

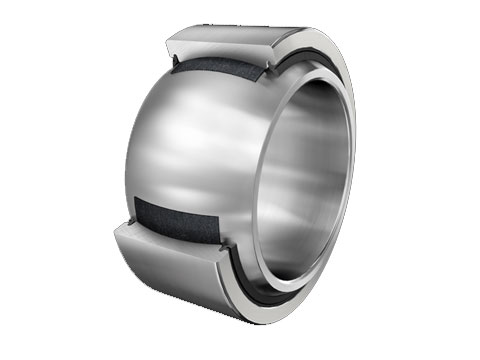

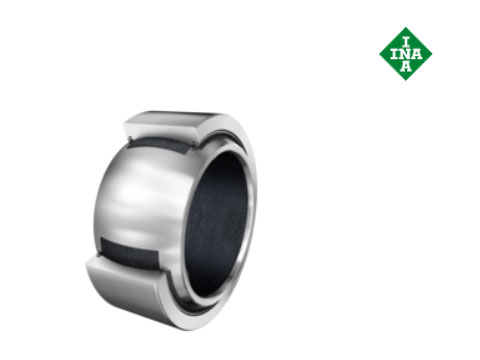

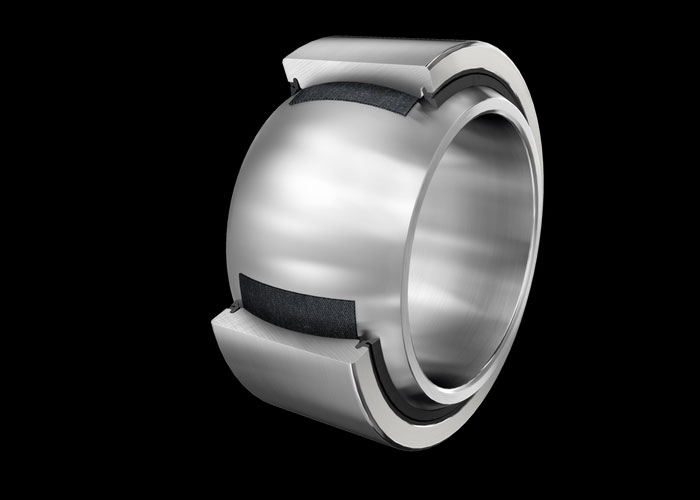

Spherical plain bearing

Radial spherical plain bearing, maintenance-free, sliding layer: ELGOGLIDE, inner ring curved surface with hard chromium coating, DIN ISO 12240-1, dimension series E, sealed

Weight and Dimensions

Inner (d) MM260

Outer (D) MM370

Width (B) MM150

Inner (d) Inch10.2362

Outer (D) Inch14.5669

Width (B) Inch5.9055

Weight (kg)51.5

Product Properties

Seal2RS - Rubber Seal on Two Sides

Contact MaterialSteel on PTFE

Data from Schaeffler (medias)

Outside diameter bearing (D) mm370

Radial Static Load Rating C0r (N)14300000

Width inner ring (B) mm150

Radial Dynamic Load Rating Cr (N)8580000

Basic static load rating, radial (C 0r)"14300000.0000"

ECLASS number23-05-01-06

ECLASS2 number23-05-01-06

Medias descriptionRadial spherical plain bearing, maintenance-free, sliding layer: ELGOGLIDE, inner ring curved surface with hard chromium coating, DIN ISO 12240-1, dimension series E, sealed

Suffix description

UKSliding Contact Surface Hard Chromium/PTFE Composite

2RSLip Seals On Both Sides

BSchaeffler Internal Code, No Technical Meaning (Can Be Used As Standard)

Product description

The GE260-UK-2RS-B INA is a spherical plain bearing. Spherical plain bearings are two-piece plain bearings. They have no rolling elements, but consist of an inner and outer ring. The inner ring has a convex outer surface. The outer ring has a concave inner surface. This construction gives spherical plain bearings their high load carrying capacity and capacity to accommodate misalignment.

The GE260-UK-2RS-B INA has a steel-on-PTFE sliding contact which makes it maintenance-free. PTFE is a special plastic. During the run-in period of these plain bearings, particles of PTFE are deposited on the opposite running surface. They fill in the small irregularities of the inner ring surface, creating a smooth surface. As a result, the components fit each other perfectly.
