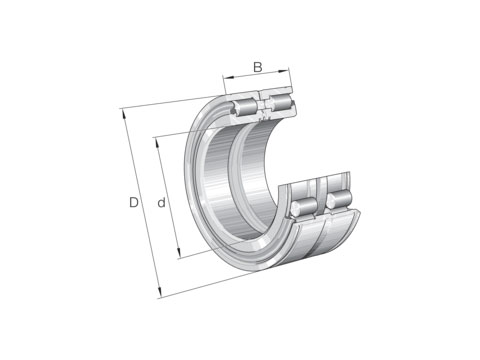

Cylindrical roller bearing SL04..-D-PP, full complement roller set, two-row, locating bearing, central rib on outer ring, 3 ribs on inner ring, type SL04
SL045030-D-PP INA
Double-row full-complement cylindrical roller bearing
Brand INA
Item Number SL045030-D-PP INA
Also known as 0893188030000
NNF5030ADA-2LSV
EAN 4054369585100
Category Cylindrical Roller Bearing Double Row
Inner (d) MM 150
Outer (D) MM 225
Width (B) MM 100
Weight (kg) 13.5
Product Properties
Bore
C - Cylindrical Bore
Seal
2L - LS-seal at Both Sides
Cage Type
FC - Full Complement, No Cage
External Modification
No External Modification
Radial Internal Play
Cn Normal Internal Play
Precision
Standard Precision
Heat Stabilization
No Heat Stabilization - Temperatures up to 120 °C
Data from Schaeffler (medias)
Width (b) mm
100
Radial Static Load Rating C0r (N)
1260000
Radial Dynamic Load Rating Cr (N)
710000
Basic static load rating, radial (C 0r)
"1260000.0000"
Limiting speed for grease lubrication (n G Grease)
850
ECLASS number
23-05-09-01
ECLASS2 number
23-05-09-01
Medias description
Cylindrical roller bearing SL04..-D-PP, full complement roller set, two-row, locating bearing, central rib on outer ring, 3 ribs on inner ring, type SL04
Suffix description
D
Outer Ring Profile Developed Further, With An Enlarged Load Bearing Area And Optimized Edge Transitions
PP
Lip Seals On Both Sides Of The Bearing
The SL045030-D-PP INA is a full-complement double-row cylindrical roller bearing. This bearing has a particularly high radial load capacity. The design consists of a solid inner and outer ring with a double row of cylindrical rollers. These rolling elements are guided between flanges. Since there is no cage, a maximum number of rollers can be used. This type of bearing is therefore suitable for very heavy loads where lower rotational speeds are involved.
