SL045030-2Z-X INA

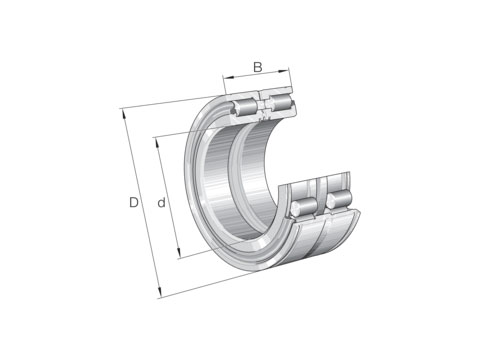

The SL045030-2Z-X INA is a full-complement double-row cylindrical roller bearing. This bearing has a particularly high radial load capacity. The design consists of a solid inner and outer ring with a double row of cylindrical rollers. These rolling elements are guided between flanges. Since there is no cage, a maximum number of rollers can be used. This type of bearing is therefore suitable for very heavy loads where lower rotational speeds are involved.

Brand
INA
Item Number
SL045030-2Z-X INA
Also known as
NNF5030V-2Z
Category
Cylindrical Roller Bearing Double Row

Weight and Dimensions
Inner (d) MM
150
Outer (D) MM
225
Width (B) MM
100

Weight (kg)
13.5

Product Properties
Bore
C - Cylindrical Bore
Seal
ZZ/2Z - Steel Seal on Two Sides
Cage Type
FC - Full Complement, No Cage
External Modification
No External Modification
Radial Internal Play
Cn Normal Internal Play
Precision
Standard Precision
Heat Stabilization
No Heat Stabilization - Temperatures up to 120 °C

Suffix description
2Z
Two Metallic Shields
X
Bearings And Bearing Parts From Were The Outer Diameter Has Been Adjusted Due To International Standards, This Suffix Will Be Only Used For A Short While. (See INA-Catalog No. 307 - Jan. 1999)
